EDU-5
Starting price:
Ask for price
Basic information
Teximp Fanuc Educational Cell is a plug-and-play solution that’s ready to use straight from the box. The EDU-5 is based on Fanuc CRX-10iA collaborative robot and is intended for educational purposes, but it is also capable of operating with Haas machines.
Robot hand description

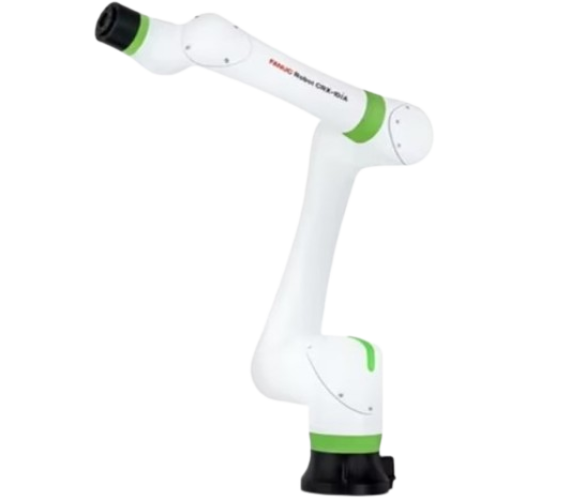

Fanuc robot CRX-10iA
- 6-axis collaborative robot
- Load capacity 4 kg / reach 550 mm

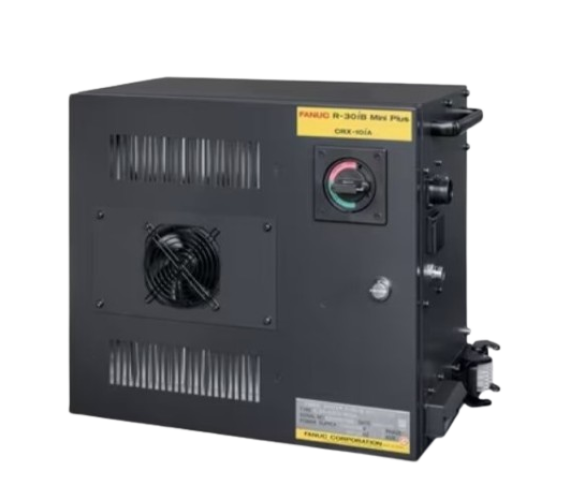

- Mini plus cabinet

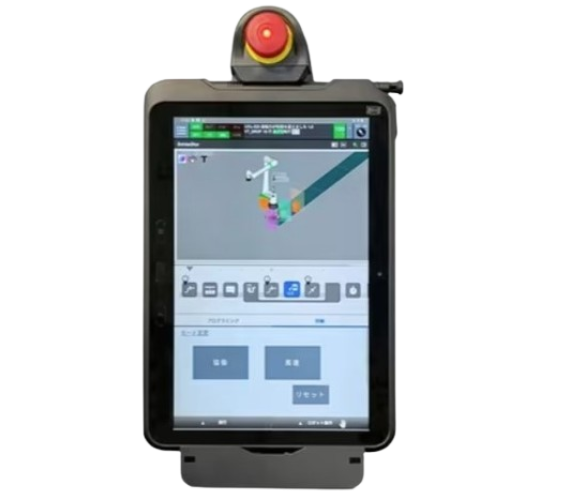

- Tablet Teach Pendant, touchscreen panel
- Repeatability: ±0.05 mm
- Working range of axis J1 = 380°

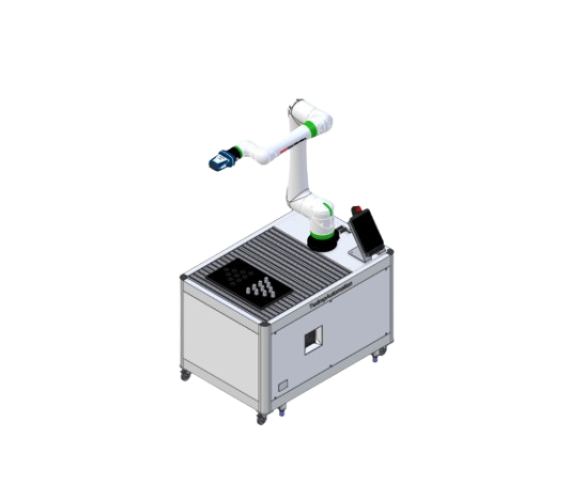

Educational Cell
Mobile Aluminum Structure
- Strong aluminium white powder coated frame
- Wheels for easy transport and feet for stability
- 2 m power cable with standard 230 V plug
- Available options:
- Safety scanner
- Nylon solitaire board and parts
Education and Training
Teximp Automation offers instructor training services, providing them with everything they need to know in order to teach students how to operate a robot.

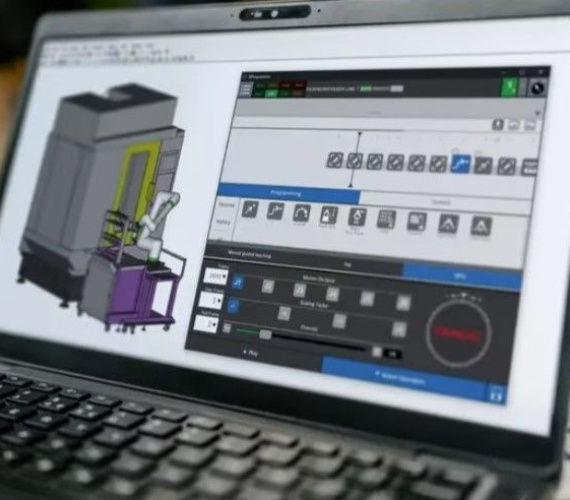

- Student software package RoboGuide – 20 licenses
- 3D offline simulations
- Virtual control (simulations): movement, cycle time, and more
- Ready to run Solitaire application including iRVision and Dual Check Safety, with all source code
- Full operating setup, and calibration instructions for robot, iRVision and DCS

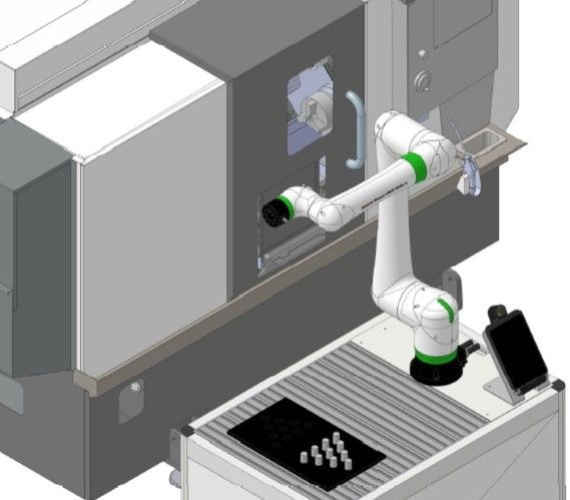

Capability to operate with Haas machines
Teximp Robot Interface includes everything required to connect EDU-5 to the Haas ST-10 or ST-15 machine.
- Communication CNC <=> URC, I/O, M-fin, safety
- Preparing for a Clamping device
- Preparing for a PAD
- Preparing for an external Air Blow
