EDU-4
Starting price:
Ask for price
Basic information
Teximp Fanuc Educational Cell is a plug-and-play solution that’s ready to use straight from the box. The EDU-4 is based on Fanuc LR Mate 200iD/4S-R-30iB industrial robot and is intended for educational purposes, but it is also capable of operating with Haas machines.
Robot hand description

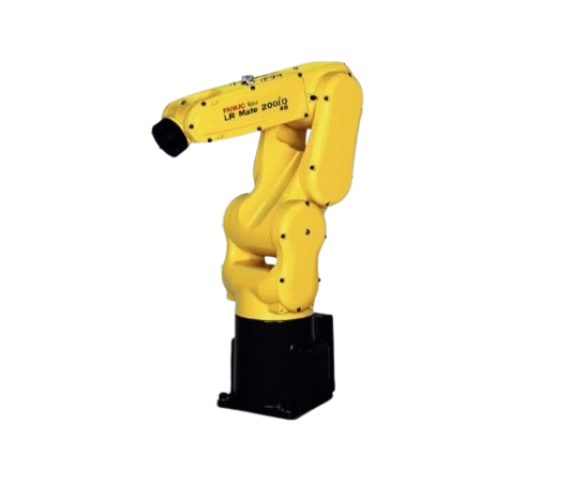

Fanuc robot LR Mate 200iD/4S-R-30iB
- 6-axis vertical robot
- Load capacity 4 kg / reach 550 mm

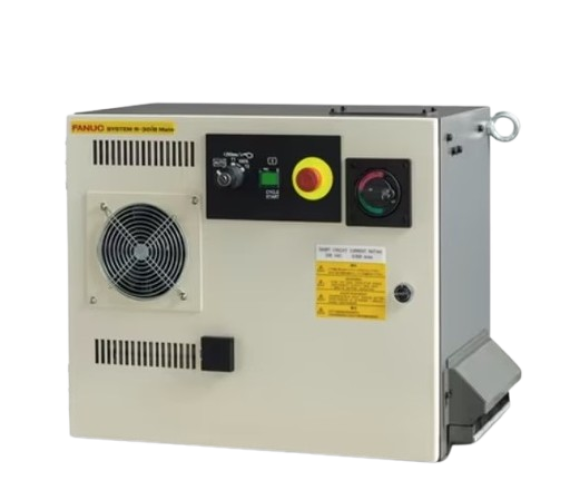

- Mate plus cabinet

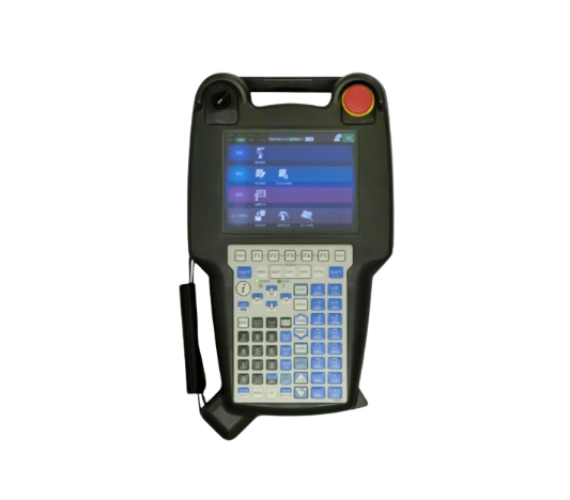

- iPendant Touch, touchscreen panel

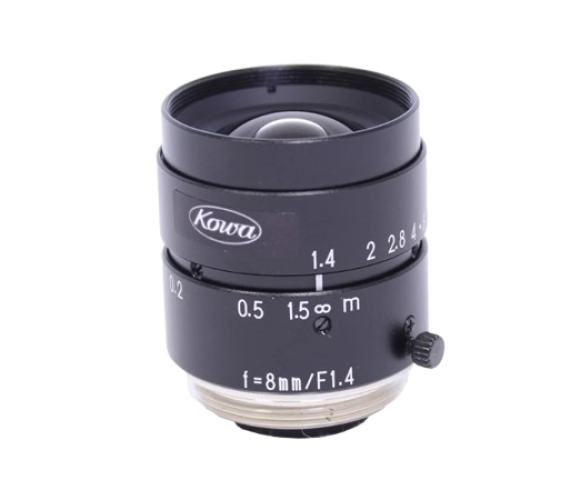

- Fanuc iRVision 2D (J901) - Kowa LM8JC
- Repeatability: ±0.02 mm
- Working range of axis J1 = 360°
- DCS Dual Check Safety Position (J567)
- High Sensitive Collision Detection (J684)

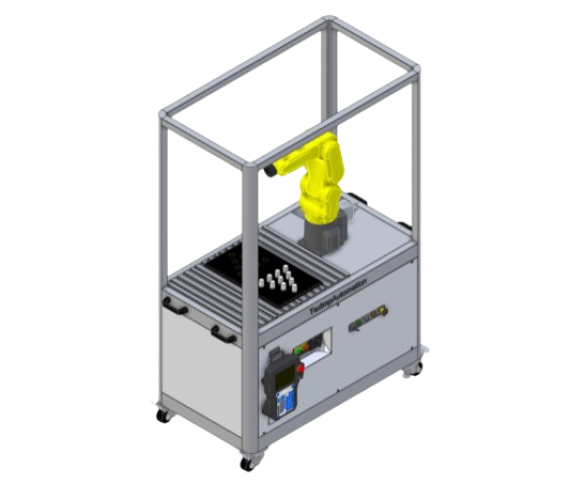

Educational Cell
Mobile Aluminum Structure
- Strong anodised aluminium frame available in silver and black (1200 x 700 x 1800 mm)
- Wheels for easy transport and feet for stability
- 10 m power cable with standard 230 V plug
- Easy access door with safety switch
- Nylon Solitaire board and parts
- Slotted Aluminium work surface for easy customisation
Education and Training
Teximp Automation offers instructor training services, providing them with everything they need to know in order to teach students how to operate a robot.

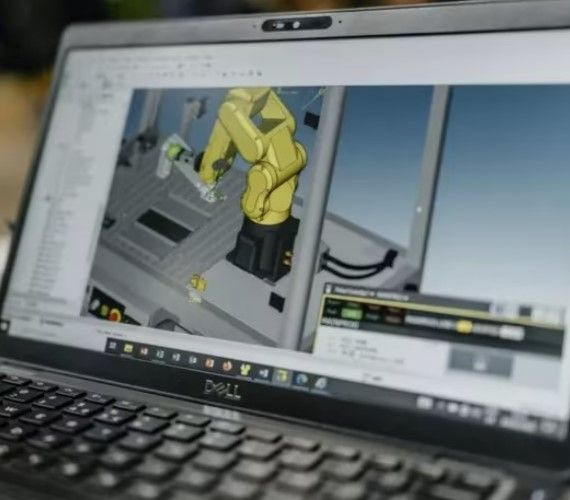

- Student software package RoboGuide – 20 licenses
- 3D offline simulations
- Virtual control (simulations): movement, cycle time, and more
- Ready to run Solitaire application including iRVision and Dual Check Safety, with all source code
- Full operating setup, and calibration instructions for robot, iRVision and DCS

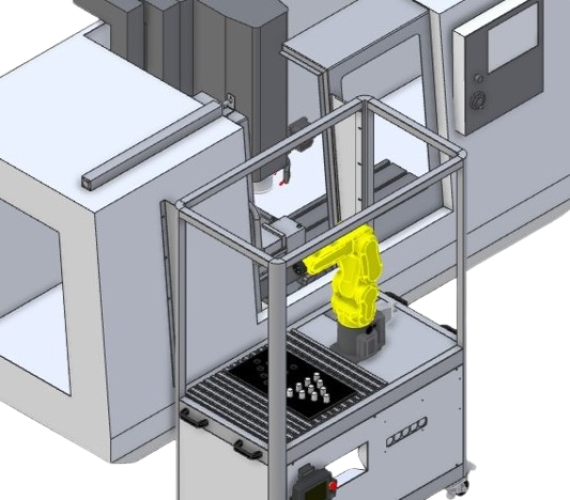

Capability to operate with Haas machines
Teximp Robot Interface includes everything required to connect EDU-4 to the Haas TM-2P machine.
- Communication CNC <=> URC, I/O, M-fin, safety
- Preparing for a Clamping device
- Preparing for a PAD
- Preparing for an external Air Blow
